Heavy Duty KOYO 32217JR Bearing 85×150×38.5mm Used In Automotive Front and Rear Axles

Single Row Tapered Roller Bearings KOYO 32217JR Bearing is one kind of tapered roller bearing design. Its dimension is 85×150×38.5mm,weight is 2.8kg, the material are adopt high quality chrome steel,this design are separable. the bearing ring with the rollers and cage assembly can be separated from the other ring, so this kind of bearing are the same with single row cylindrical roller bearings.

Among metric-design tapered roller bearings specified by ISO 355, there are those having new dimensions that are different than the dimension series 3XX used in the past. Part of them are listed in the bearing tables. They conform to the specifications of ISO for the smaller end diameter of the cup and contact angle. The cone and cup assemblies are internationally interchangeable.

Besides metric design tapered roller bearings, there are also inch design bearings. For the cone assemblies and cups of inch design bearings, except four-row tapered roller bearings .

Tapered roller bearing KOYO 32217JR Bearing is made of High quality chrome steel, pressed steel cage,and super grinding rollers, each inner ring and outer ring of KOYO 32217JR Bearing can be interchange, so XRB (China bearing manufacturer) can produce very high quality KOYO 32217JR Bearing for its customers, large stock and advance production for single row tapered roller Bearings can meet your demand for fast delivery and high quality, Tapered roller bearings can be used in heavy truck, more tapered roller truck bearing can be supply .

Taper Roller Bearings also have the other different design as follows

--Metric Single Row Taper Roller Bearings

--Inch Single Row Tapered Roller Bearings

--Double Row Taper Roller Bearings

--Four Row Taper Roller Bearings

--Hub bearing units for trucks

Taper roller bearings have tapered inner and outer ring raceways between which tapered rollers are arranged . The projection lines of all the tapered surfaces meet at a common point on the bearing axis . Their design makes taper roller bearings particularly suitable for the accommodation of combined (radial and axial) loads . The axial load carrying capacity of the bearings is largely determined by the contact angle . the higher the axial load carrying capacity . An indication of the angle size is given by the calculation factor e ; the larger the value of e, the larger the contact angle and the greater the suitability of the bearing for carrying axial loads.

Application Of Single Row Tapered Roller Bearings

XRB is the China bearing manufacturer,exporter, supplier, it can supply KOYO 32217JR bearing , Our large quantity Single Row Tapered Roller Bearings Stock can meet your need with good quality and fast delivery, Also you can find FAG 32218A Bearing, the other type and brand tapered roller bearing. just like NSK , NTN , NKE , ZWZ , TIMKEN . We accepted DHL,FEDEX,TNT express for small order and samples order,also the transportation By AIR or By Sea,by Train are all avaiable.we asure we can ship high quality KOYO 32217JR bearing to your office at the first time .

tapered thrust bearing

tapered roller thrust bearings

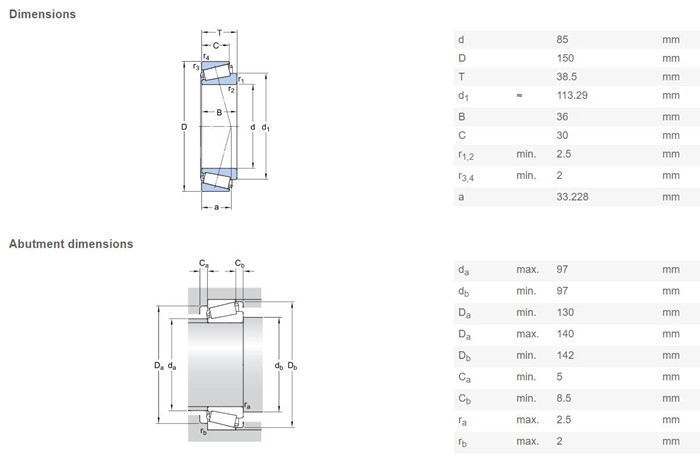

Heavy Duty KOYO 32217JR Bearing 85×150×38.5mm Used In Automotive Front and Rear Axles Images
